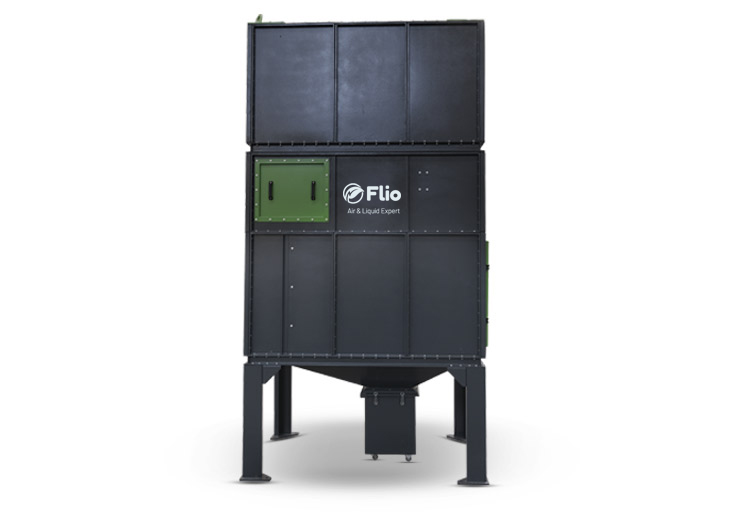

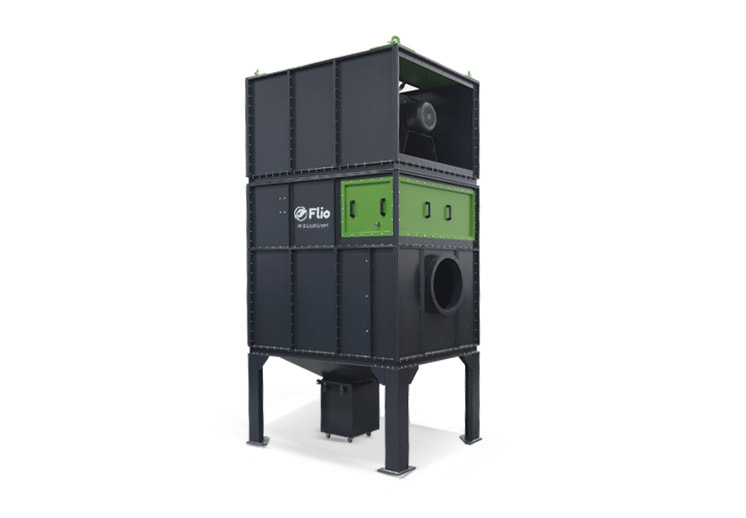

Industrial Dust Collection Systems-Airjet

AIRJET filter systems are used in laser and plasma cutting machines. The smoke and particles formed are filtered. It is determined depending on the number of filters and engine power. We have 3 different models and solutions for the central system.

NOTE: Our electrical components that we use to minimize the risk of sparks in aluminum etc. products are explosion-proof. These equipments are optional.

Application Areas

  • Laser cutting machines
  • Plasma cutting machines
  • Automation systems
STOCK CODE MODEL FEATURE MOTOR POWER NUMBER OF FILTERS WEIGHT
105010000152 AirJet 4000 4000 m³ 5.5 kW 380V-50Hz 4 480 kg
105020000152 AirJet 6000 6000 m³  7.5 kW 380V-50Hz  6 800 kg
105030000152 AirJet 10000 10000 m³ 11 kW 380V-50Hz 9 1544 kg



MODEL DIMENSIONS (mm)
A B H
AirJet 4000 1460 1050 3270
AirJet 6000 1460 1650 3570
AirJet 10000 1981 1400 3845
